Smoke & CO Detectors at Ernstoff Properties in Los Angeles

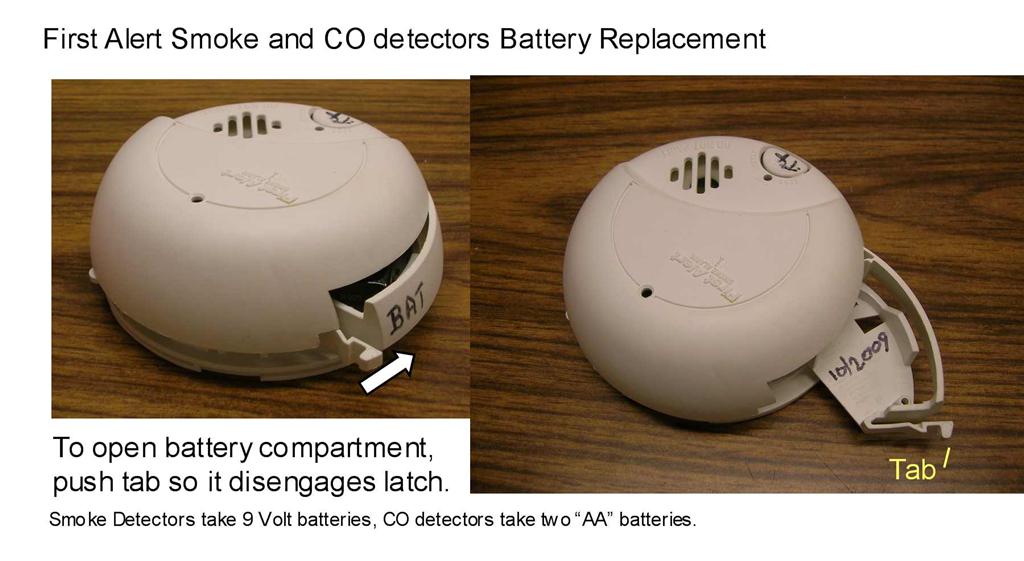

Batteries: (Spare 9 Volt batteroes are
taped to hidden side of hot-water heater in laundry room)
- Retrofitted Smoke
Detectors take 9 V, No batteries in detectors install before
batteries were required.
- Plug in
First Alert or BRK CO detectors take AA,
- Hardwired First Alert or BRK CO Detectors take 9 V. .
- Hardwired combination First Alert or BRK Smoke and CO detectors take ??? batteries.
Smoke & CO Detector Manuals and Aural Alarm Codes
Air Conditioners
6000
BTU

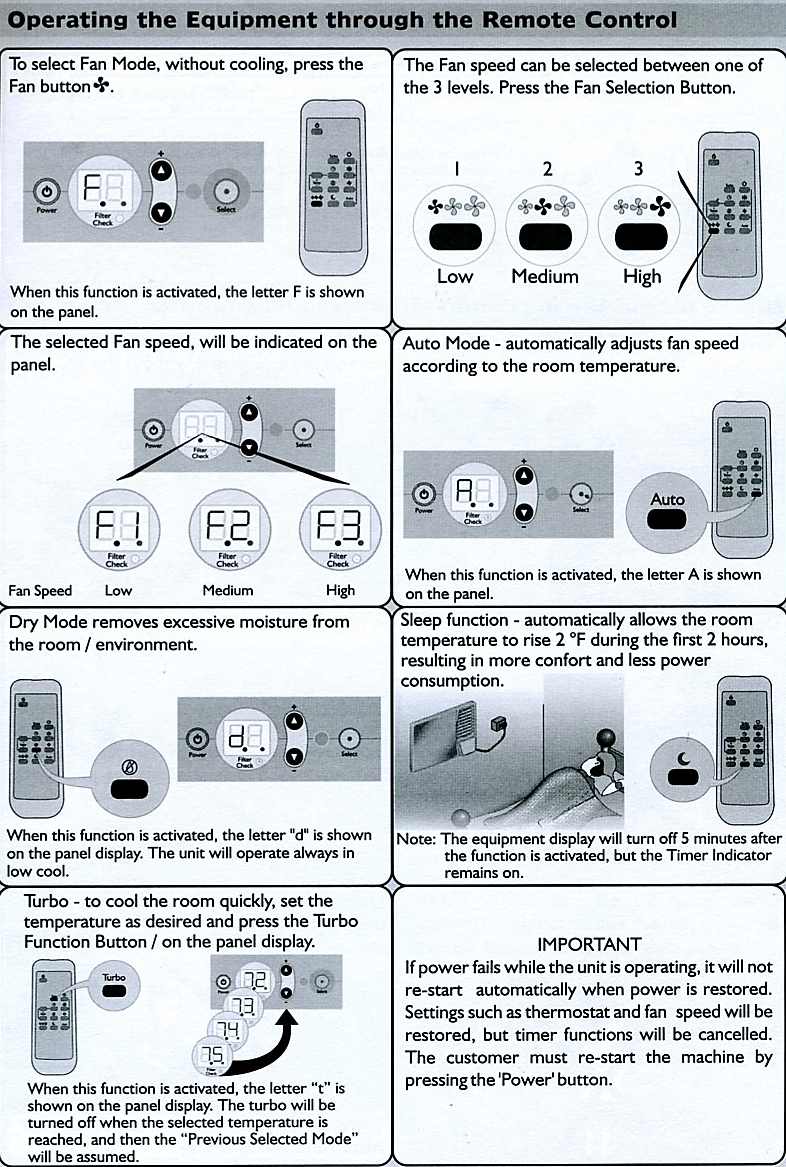

/ hour Carrier airconditioner remote control page 1
6000
BTU
/ hour Carrier airconditioner remote control page 2
6000 BTU

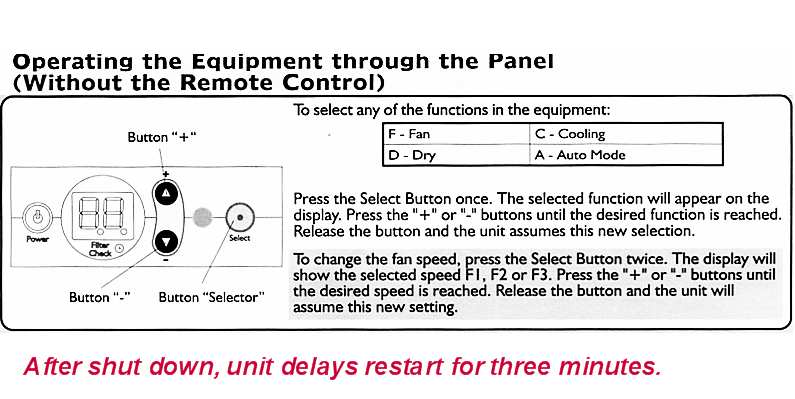

/ hour Carrier airconditioner control panel
J6-ACnFAH manual
Please note that color coding of wiring has faded. Be careful! J6-ACnFAH E-Schematic
Dishwashers
Whirlpool Dishwasher

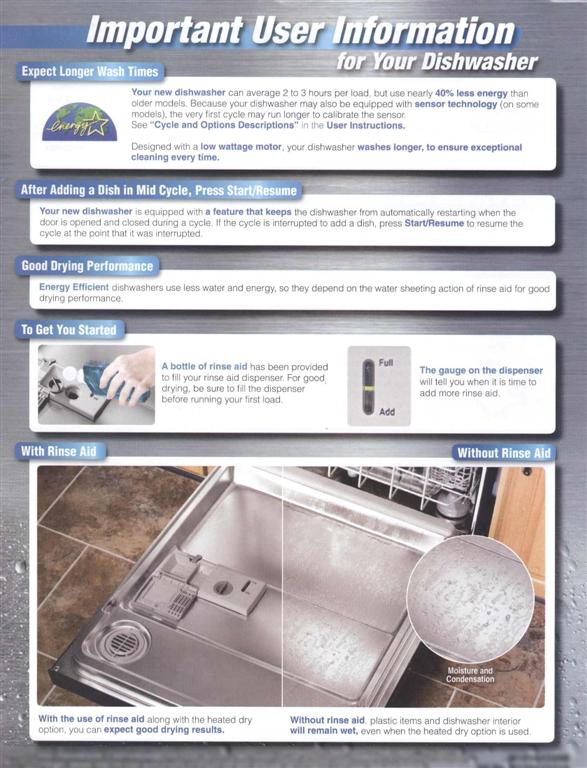

User Guide Whirlpool
Maytag Dishwasher
Upper Rack Replacement End Cap Removal Instructions Manual
Dishwasher Rack End Removal
End Cap Removal Hints
FIRE PLACE IGNITORS at Vinton
Pilot light ignitors come in left and right

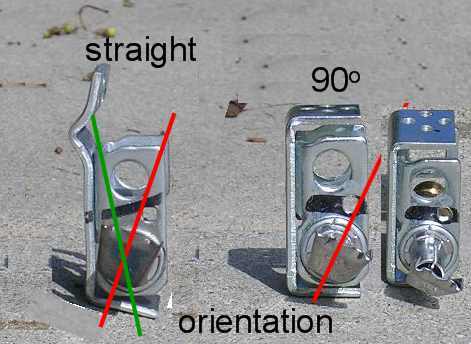

side feed. For Vinton, must have unit with orientation shown in green,
and bracket needs stright (not 90 degree) mounting.
Pilot Light Ignitor Orientation

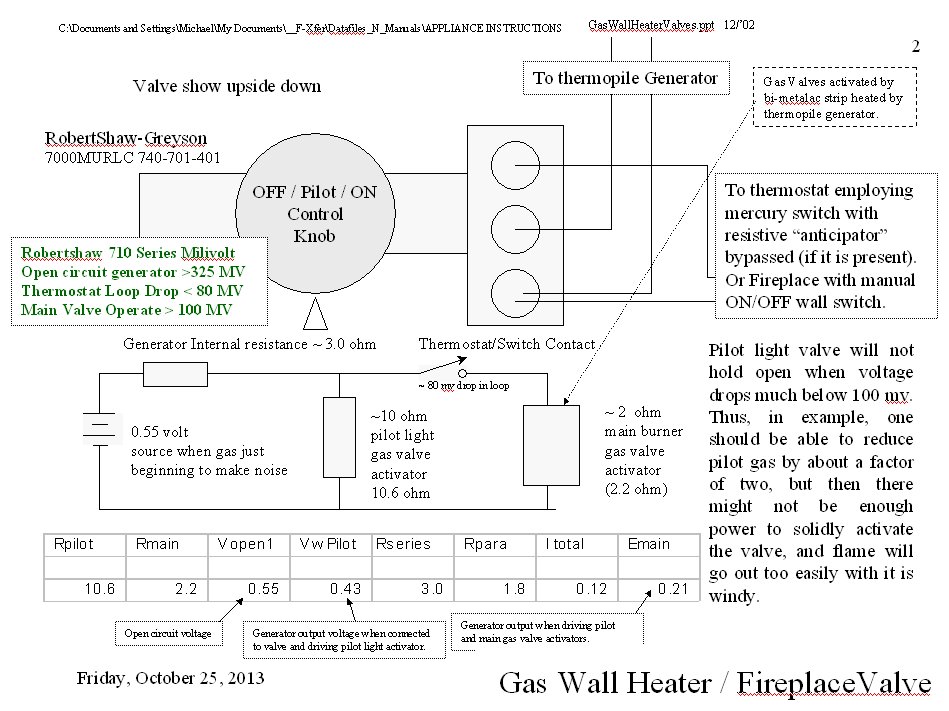

Generator Output Voltage Adjustment
HOT WATER HEATER
operation (Basically the same for Jasmine and Vinton)
Solar Hot Water
Heating Basic

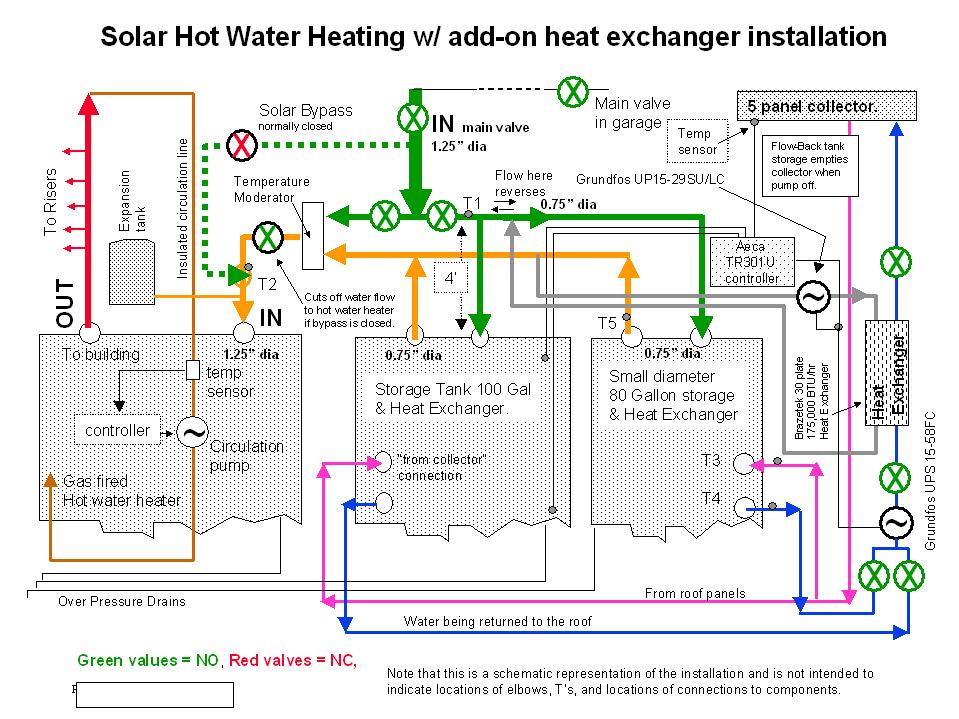

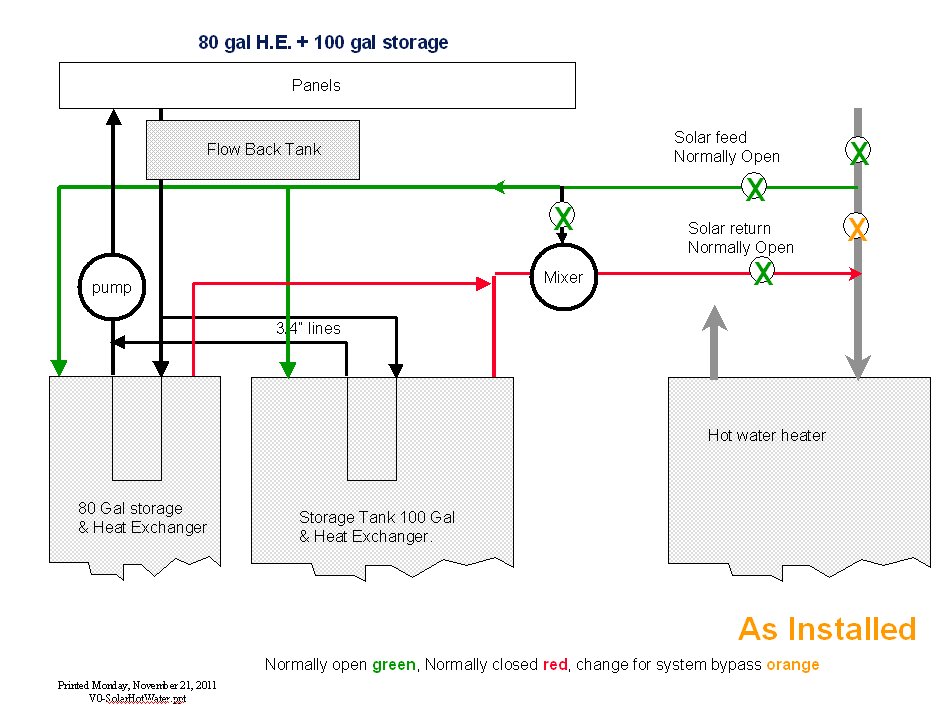

Five
solar
panels on the roof heat water which is then circulated by a pump
through two heat exchanger tanks located in the laundry room.
The
water in the heat exchanger tanks is fed into the gas hot water heater
as needed to supply hot water to the building. The fluid
circulating through the solar panels and the heat exchangers does not
mix with the City water.
Vx Hot Water Heating System
There are numerous valves to allow servicing of the hot water system.
Those valves with green tape are normally open. Those valves with red
tape are normally closed. On the wall to the right of the window
are three switches and a time clock:
- Turns the power ON/OFF to the hot water heater and the solar pumps/controller

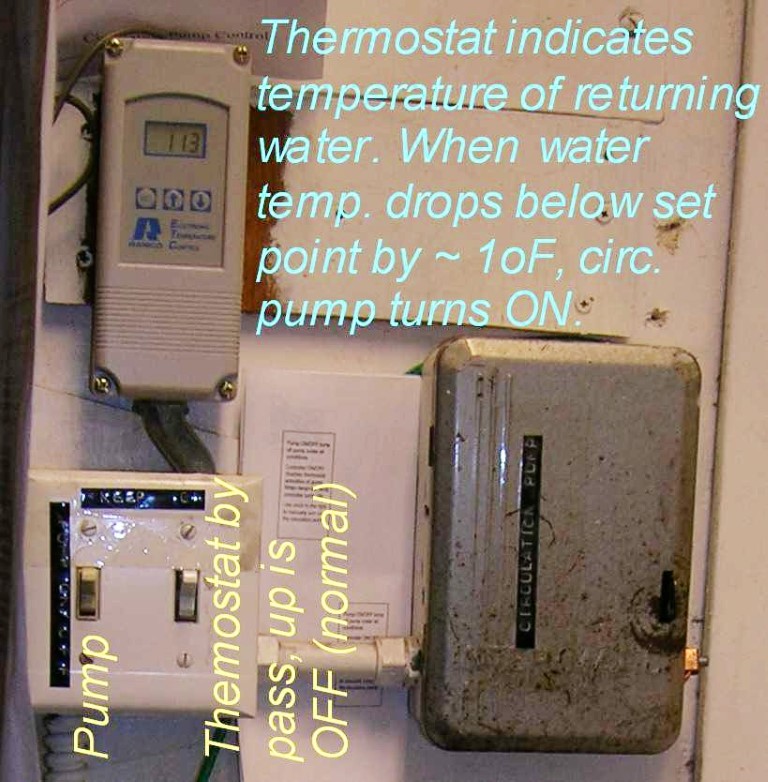

- Turns the power ON/OFF to the circulation pump. When hot water is turned off, it must be turned off.
- Allows the circulation pump thermostat to be bypassed. When in the ON position (down), the pump runs continuously.
- The time clock is supposed to be set so the circulation pump runs
in the prime morning and eventing hours OR when commanded by the
circulation pump thermostat.
Gas Heater
The sequence of operations for heating hot water is as
follows:
(1) Thermostat calls for heat and commands flue vent damper
to
open. (2) Flue vent opens and sends power to igniter. (3) Ignitor spark
lights pilot flame. When pilot flame ignition is sensed, power is sent
to open main gas value.
Hot Water Circulation Line
GARAGE GATE
Operation - Vinton
WARNING .
Battery back-ups mean the gates can open even when there is
no utility power to the building.
- Garage Gate Remote Control Transmitter Settings Gate Operation
- Inverters have been installed to power the front and back
gates from 12
Volt batteries in the case of a failure of utlity power. The

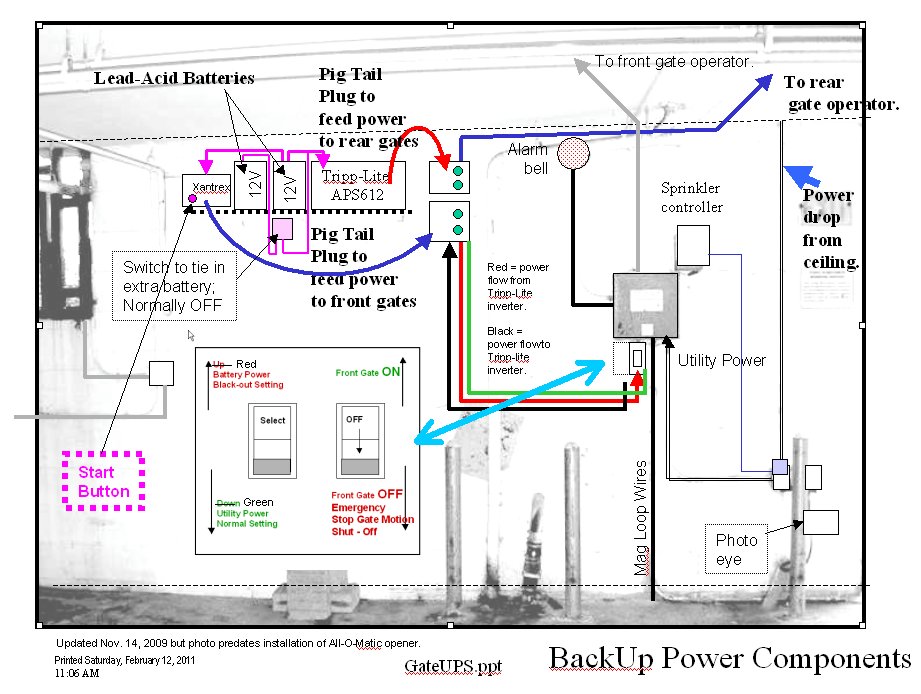

location and configuration of the inverters are shown in Back
Up Power Component Locations.There
used to be two inverters, one for the older Elite Operators
on the rear gate, and a new "sine-wave" inverter for the All-O-Matic
operator on the front gate. In September 2014, the system was
reconfigured to have the Xantrex inverter power both gates from a
single 12 V sealed battery with a Model 2012 BatteryMINDer

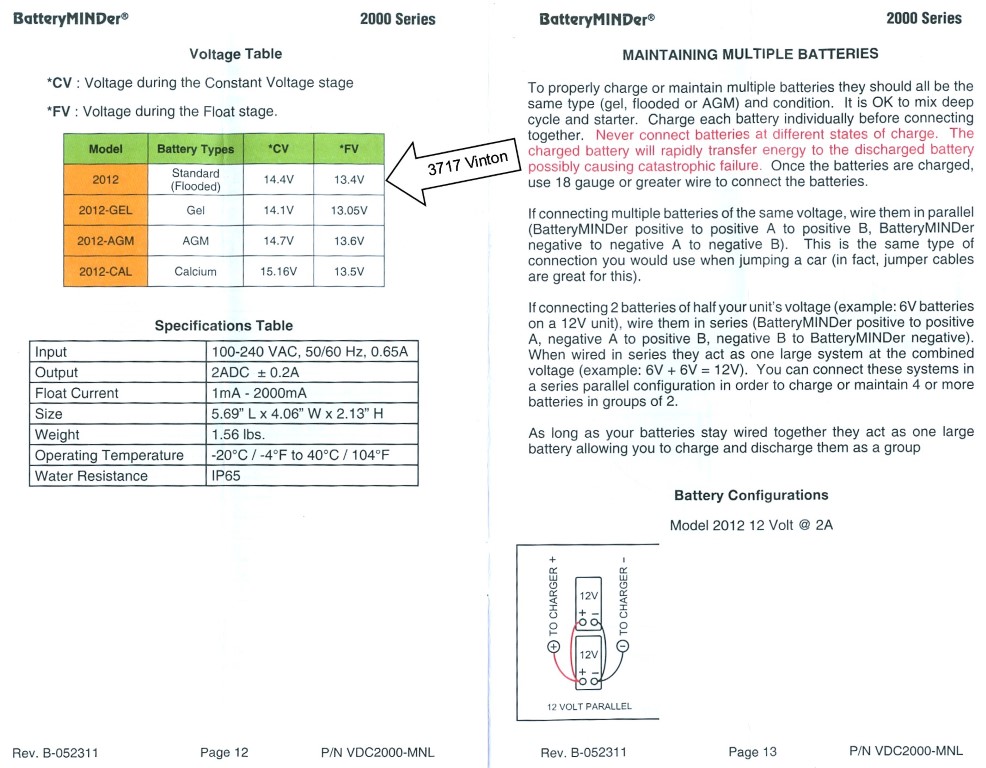

charger. BatterMINDer

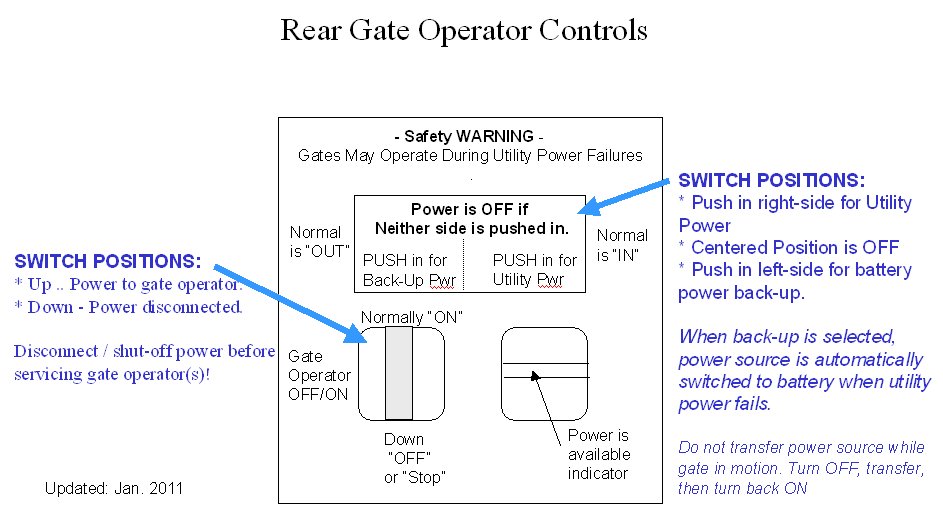

- Instructions for switching over the rear gates to the
back-up power supplies in the event of a power failure are shown in: Rear
Gate Controls .
- Instructions for switching over the front gates to the

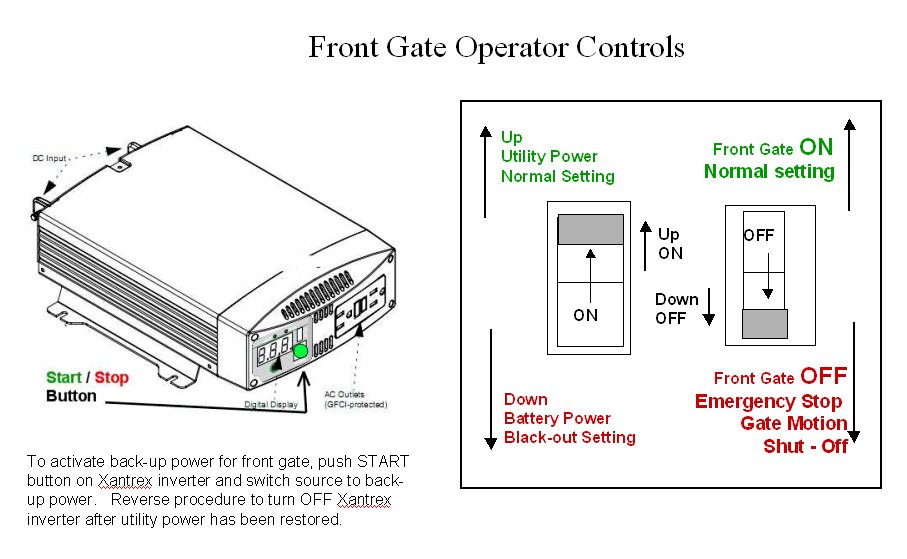

back-up power supplies in the event of a power failure are shown in V0-FrontGateOp Controls.jpg
- Installation of an automatic cross-over switch is planned for
Jan. 2016; when installed, it will automatically switch gate operators
back to utility power when utility power is restored.
- The connection details for the power inverters are shown

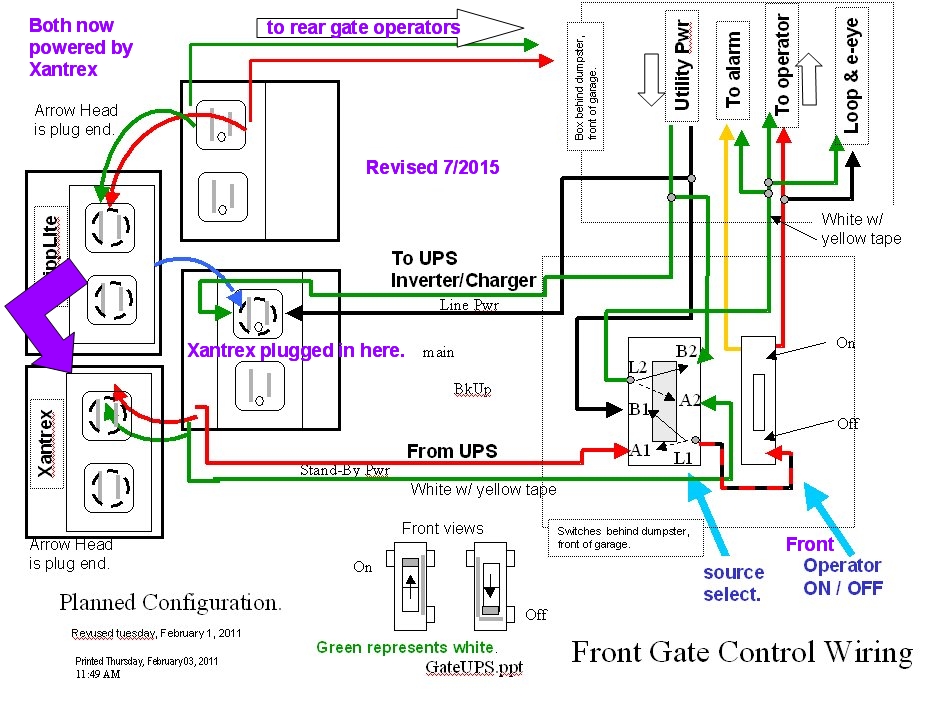

in: Inverter
Wiriing
- There is now only one
power inverter and one battery. The switch connect another
backup battery has been disconnected. The invertert is
typically left on 24/7. When on it alternatively indicates battery
voltage and load. The battern voltage should be about 13.4 volts.
It has suffucient capacity to power both gates at the same time
provided that their opening is not initiated simultaneously; in that
case, the circuit breaker on the inverter will pop.
- If
there is a conflict between what is shown on this web site and
instructions posted on the wall next to the switches, follow the posted
instructions.
GARAGE GATE
Operators - Vinton Rear
Key to open lock on alley side operator is key with red tape.
Chain is ANSI #41, pitch 1/2 inch, roller width 1/4 inch. Approximately 24 feet of chain needed on each side
To disassemble & reassemble use special deep
socket tools in the storage cabinet.. Make sure power is off.
GARAGE GATE
Operators - Vinton Front
Gate can be opened with either a Linear 512 dip
switch clicker or a Linear MegaCode. Linear 512 may be on a clock.
To program addition MegaCode Clicker see Procedures/Linear-AP-5_Programming-Clicker.jpg

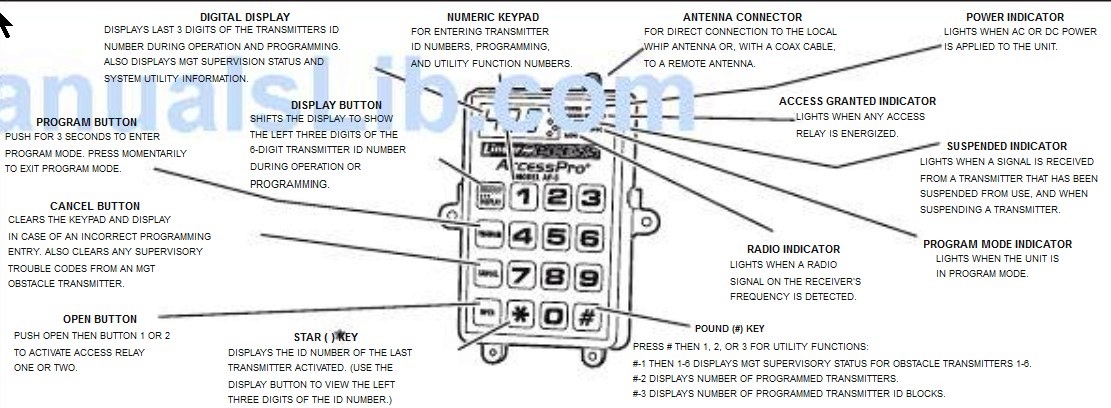

AccessPro AP5 front panel: Procedures/Linear-AP-5_Controls.jpg
PEDESTRIAN GATE
Operation - Jasmine
At Jasmine Front gate, push the "buzzer" button to sound tone in apartment.
Note gate latch has a silent release.
At Jasmine Rear gate, press the buttons in the code
sequence. Note gate latch has a silent release. press last button again
to repeat release.
PEDESTRIAN GATE & DIRECTORY DIALER Operation - Vinton - 2015 Update
DoorKing dialer is best programed from a telephone
by calling into the unit following DK 1810 instructions intentionally
not presented here.
DoorKing dialer connects to the telephone network via twisted pair to
telephone connection box and from there back up to location of Vonage
translator.
Tenants are to, push 9 on telephone when
called to open gate. Alternatively, visitors can enter one of the four digit gate codes.
Electric Strike Operation

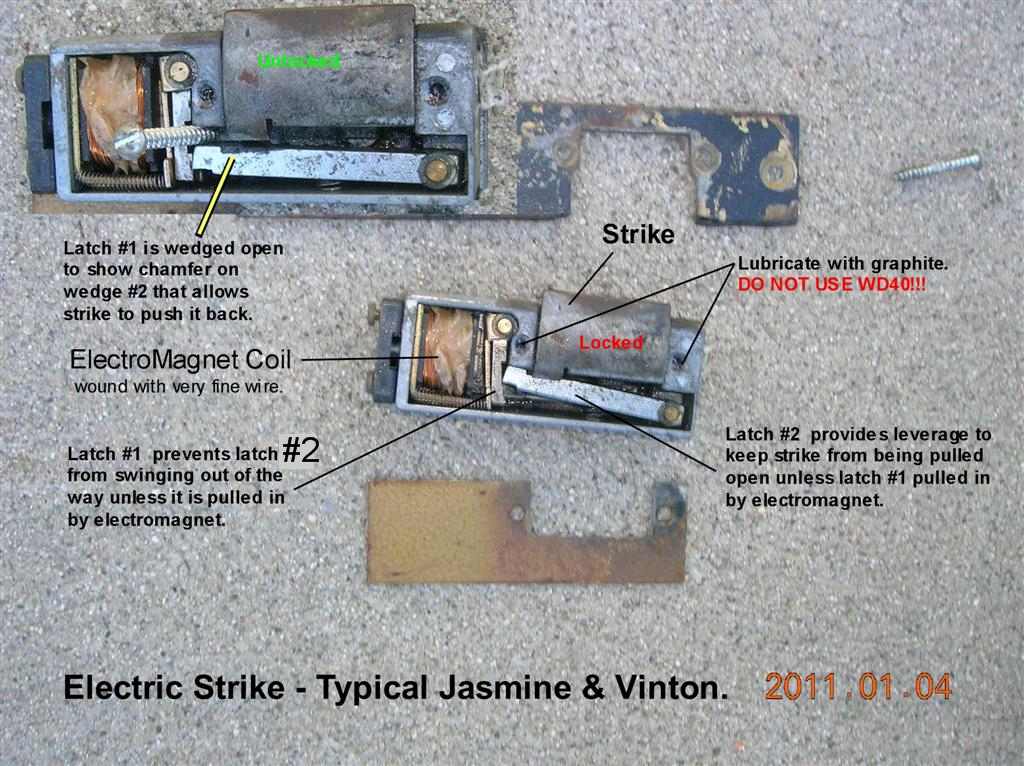

J0-GateEstrike
Notes -SVGA.JPG
Iron

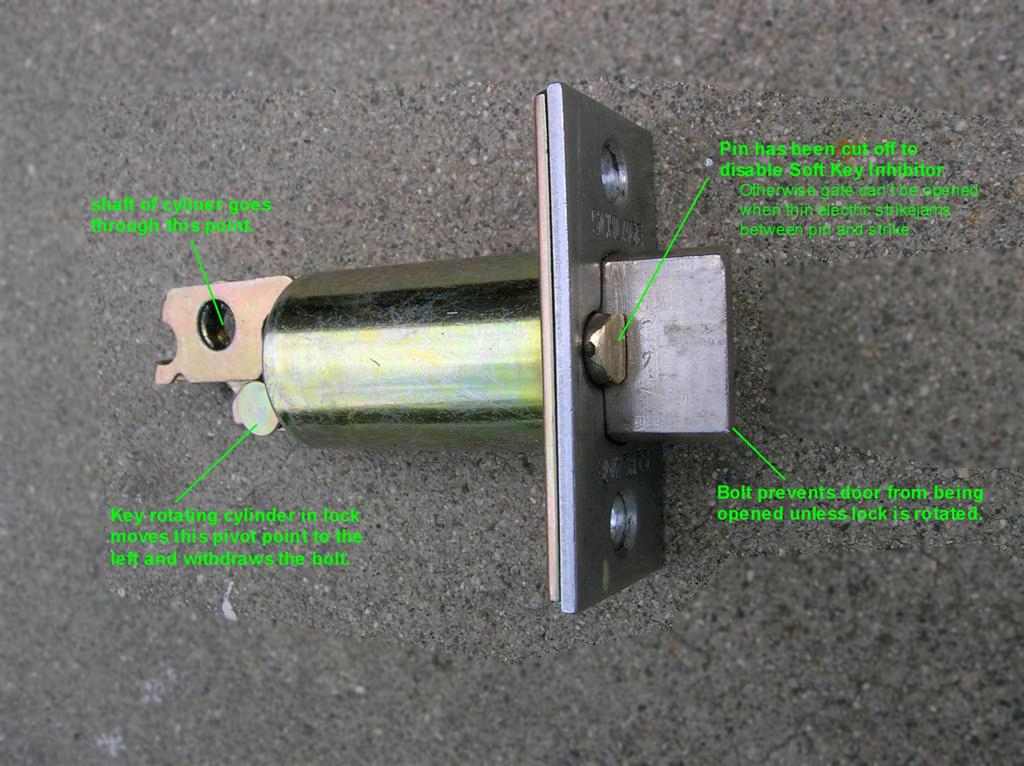

Gate Latching Bolt Soft Key Modification
Electric
Strike Adjustment PowerPoint Charts

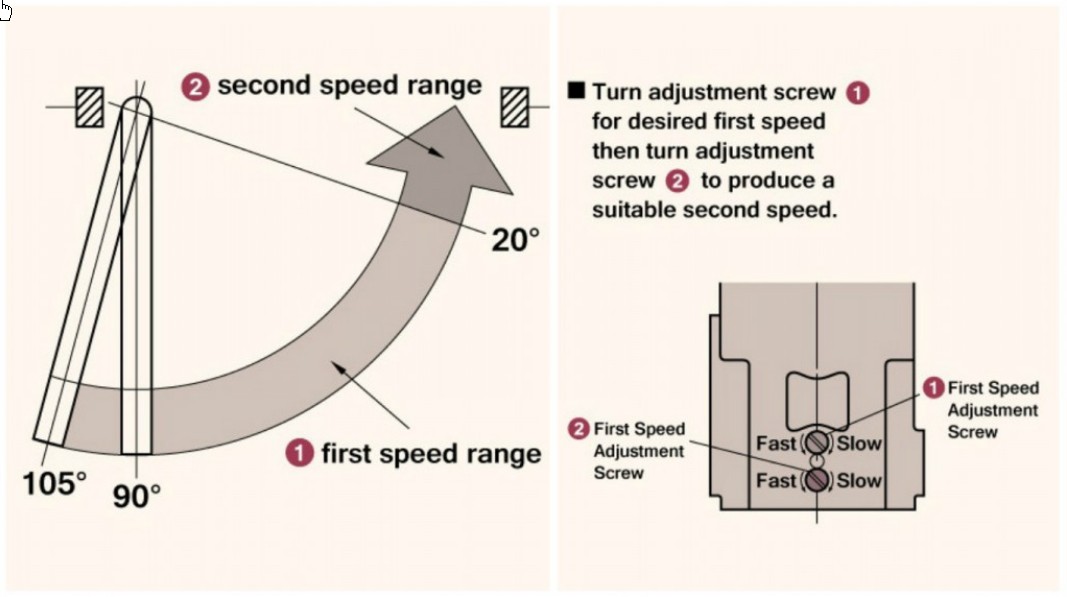

Hydrolic Gate Closer Adjustment #1 is Door Closing Speed, #2 is Door Latching Speed. clockwise to slow, counter CW to speed up.
Hydraulic Closer Configuration to preclude slamming

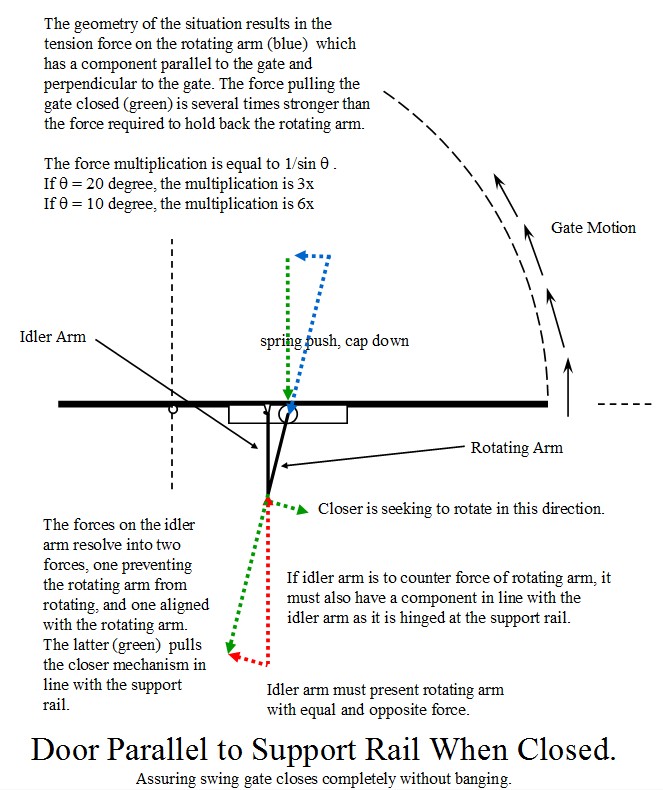

Swing Gate Closer Configuration Optimization
TOILET INSTALLATION

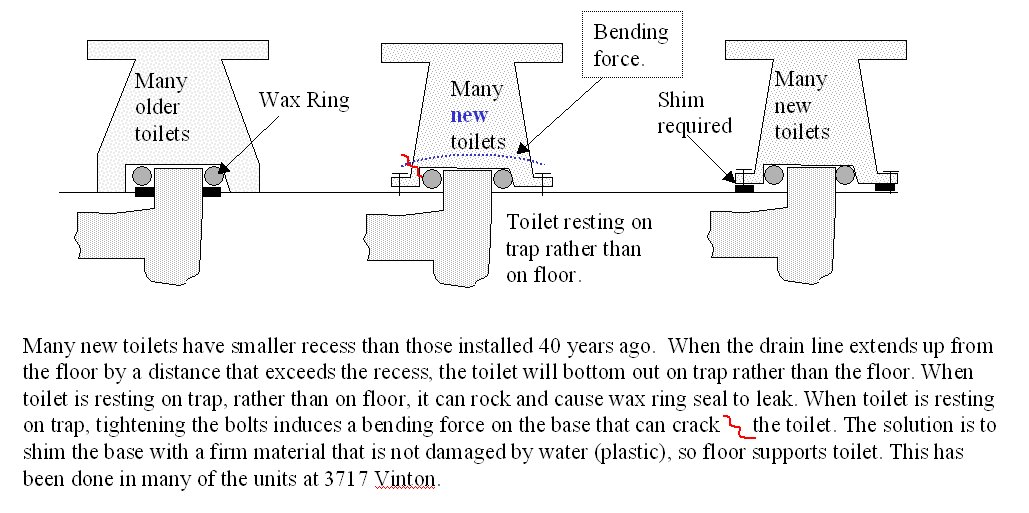

Toilet Installation Precaution
FAUCET VALVES - Servicing Bath and Kithen

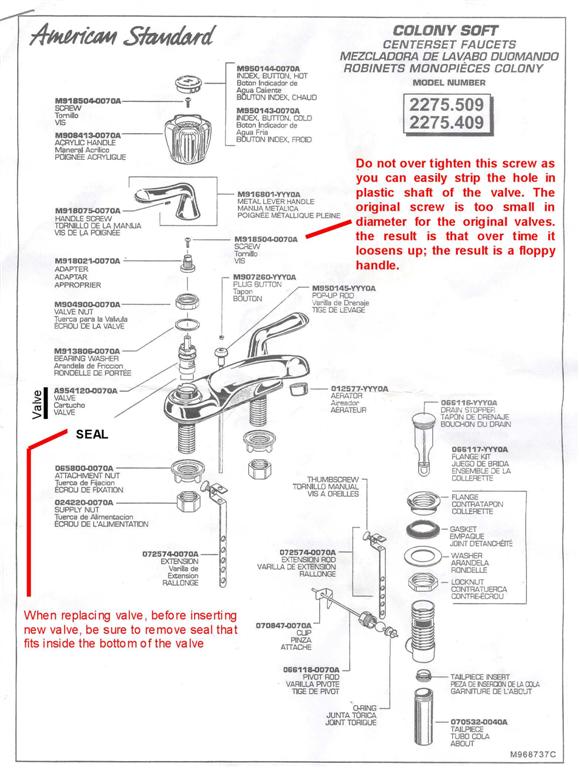

American Standard Ceramic Lavoratory Valves Two Hangles
AmStd Lavoratory One Handle Faucet Valve Cartride

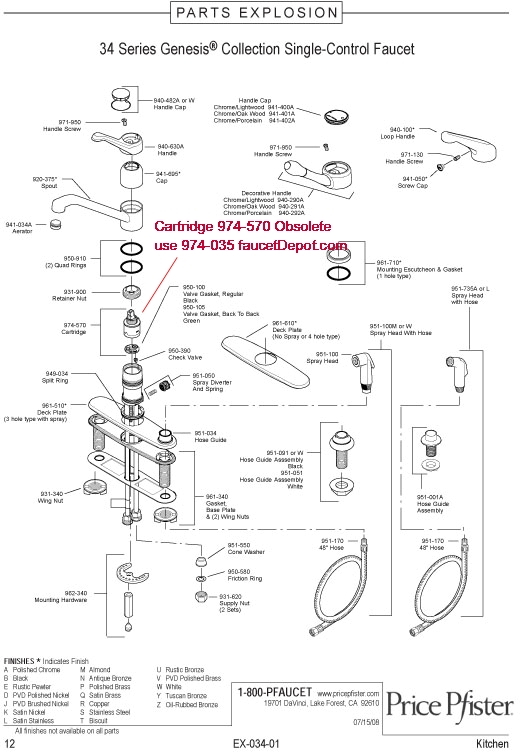

pfister K-faucet diagram
TUB / SHOWER VALVES & PLUMBING FITTINGS

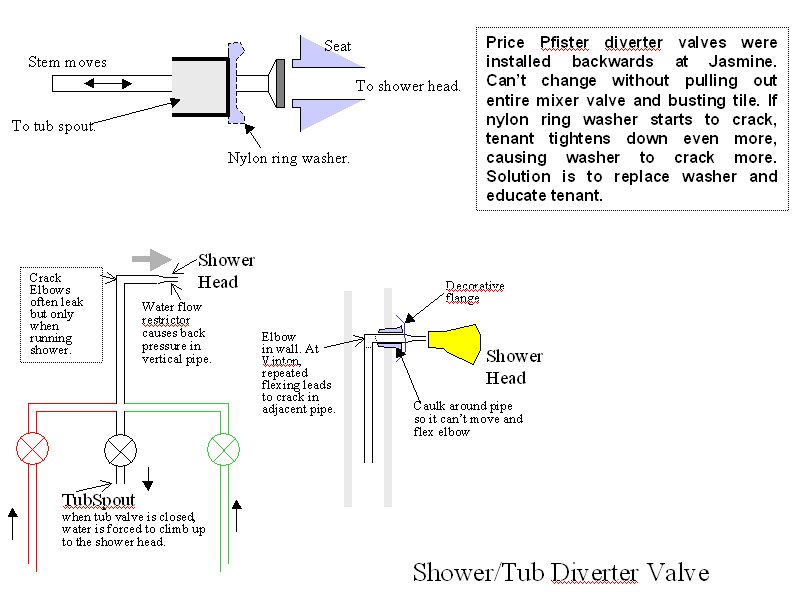

Jasmine original Price Pfister Values - All except central bath in #6. See Jx-BathShowerPlumbing.jpg

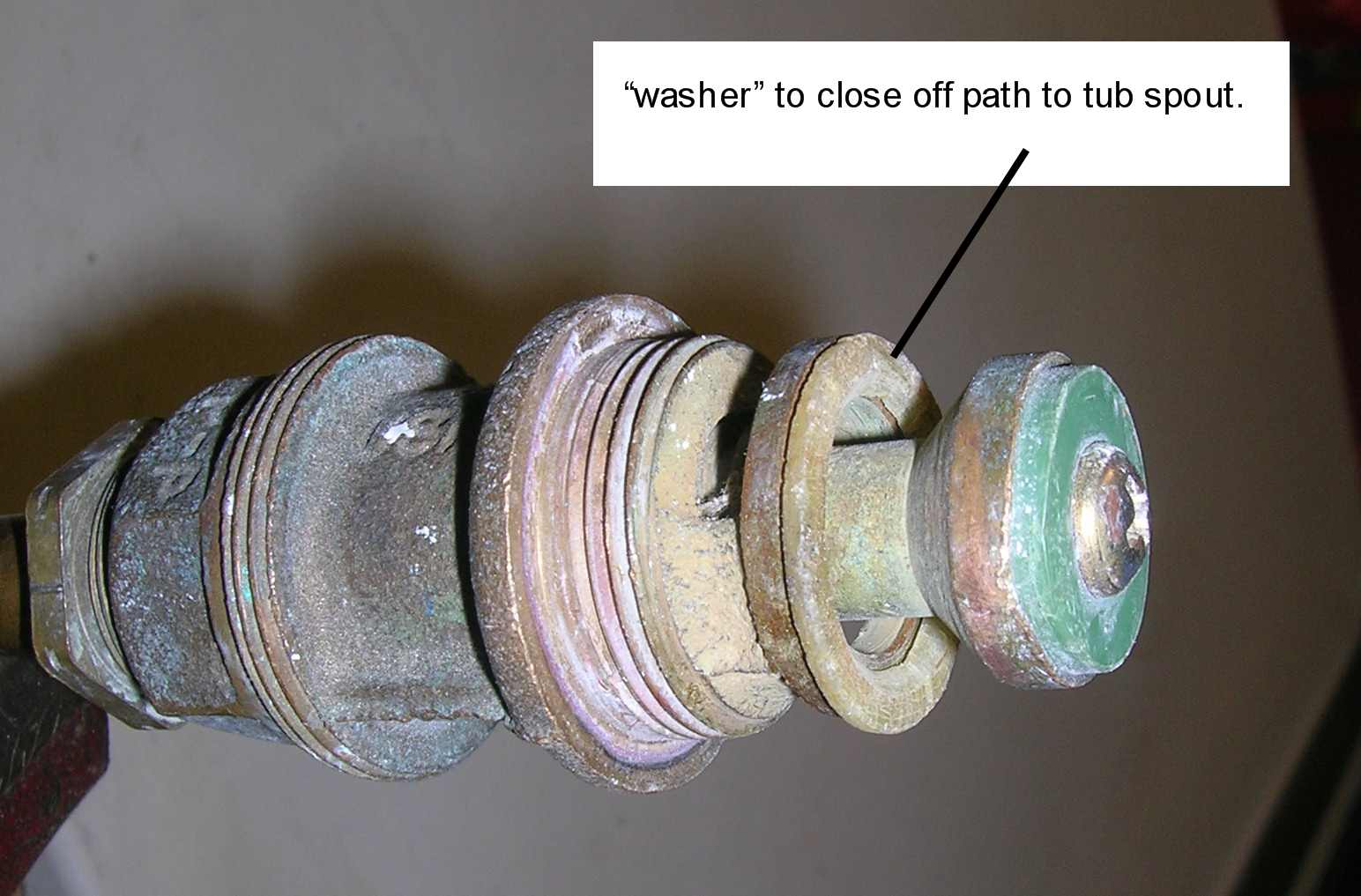

Image of Price Pfister Diverter Valve Jx-DiverterValve.JPG

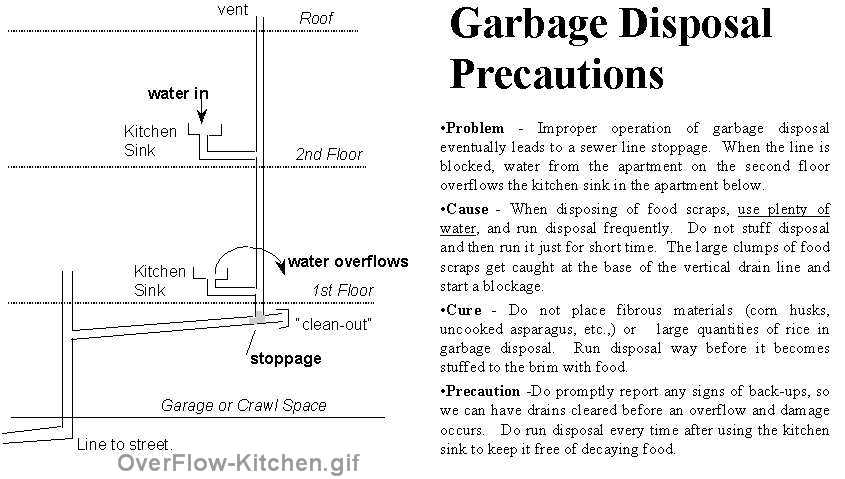

Over stuffing kitchen sink garbage disposal can result in lower floor flooding. See OverFlow-Kitchen.jpg

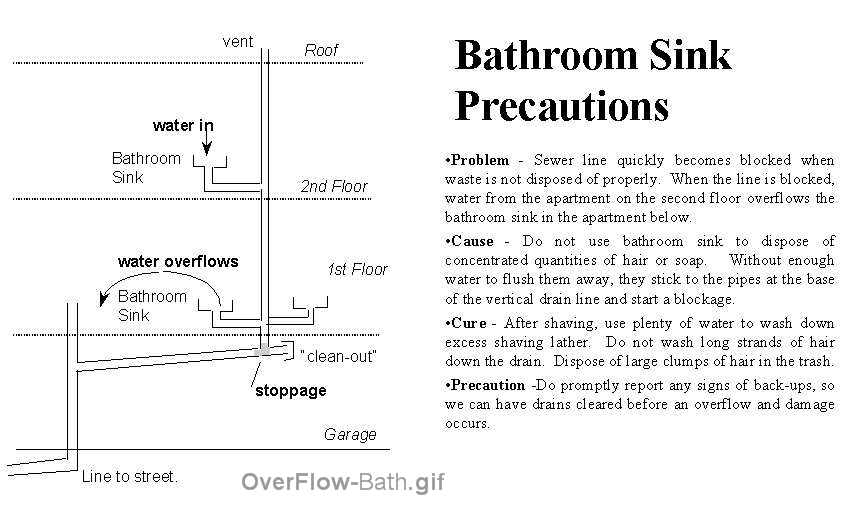

Over stuffing bathroom toilet can result in lower floor flooding. See OverFlow-Bath.jpg

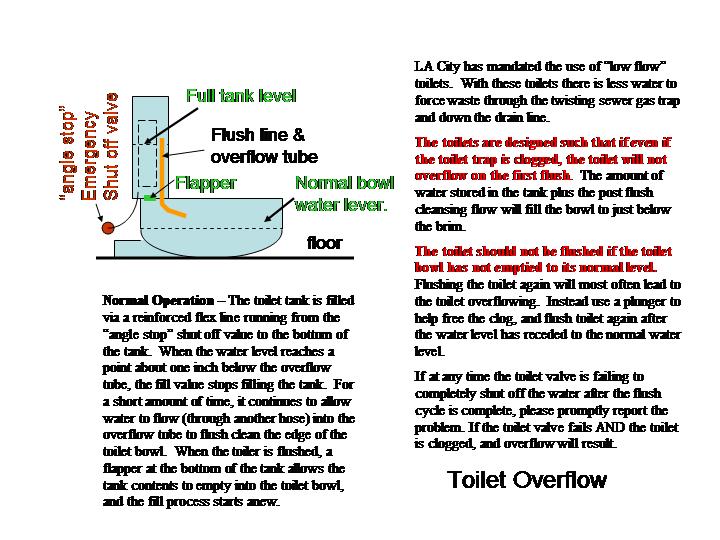

Stuffed up toilet will not overflow with just one flush, see Toilet-Overflow.jpg
UTILITIES - Gas / Electric / Water

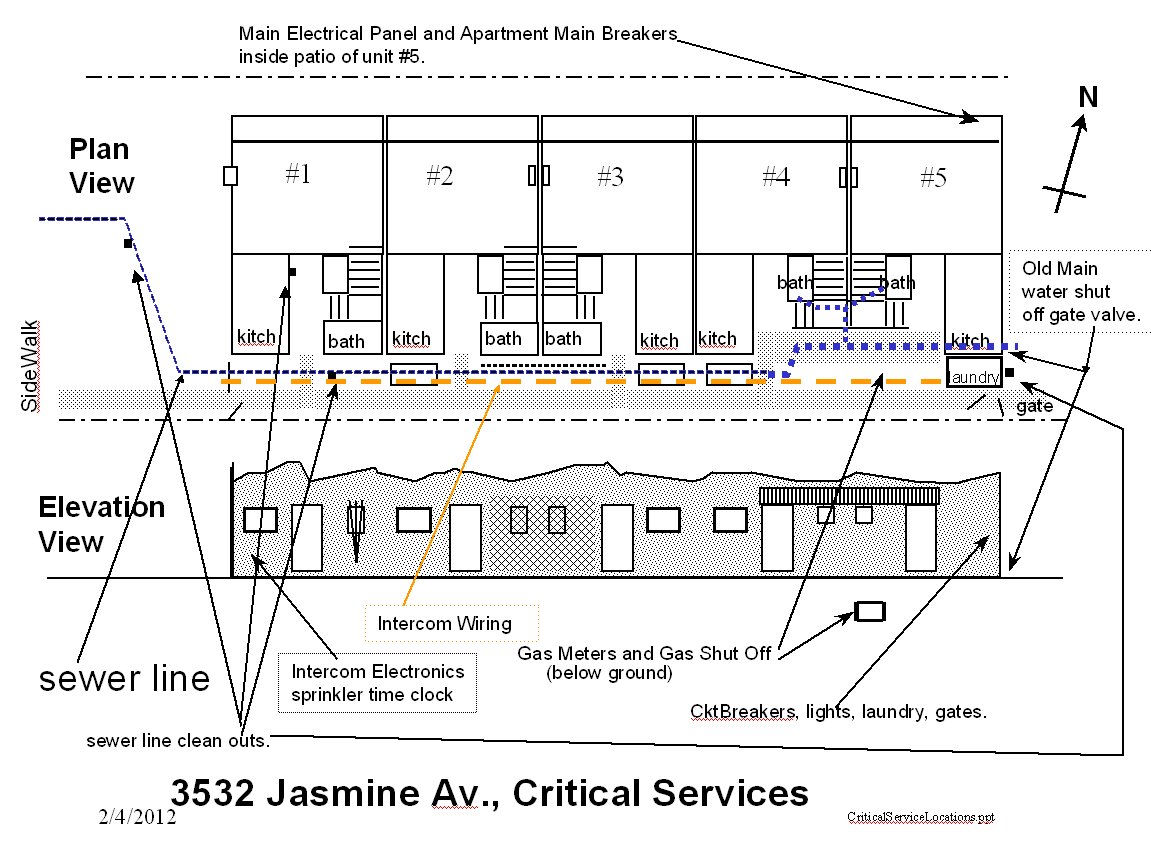

KEY UTILITY SERVICE LOCATIONS - Vinton V0-UtilitiesSevices.jpg

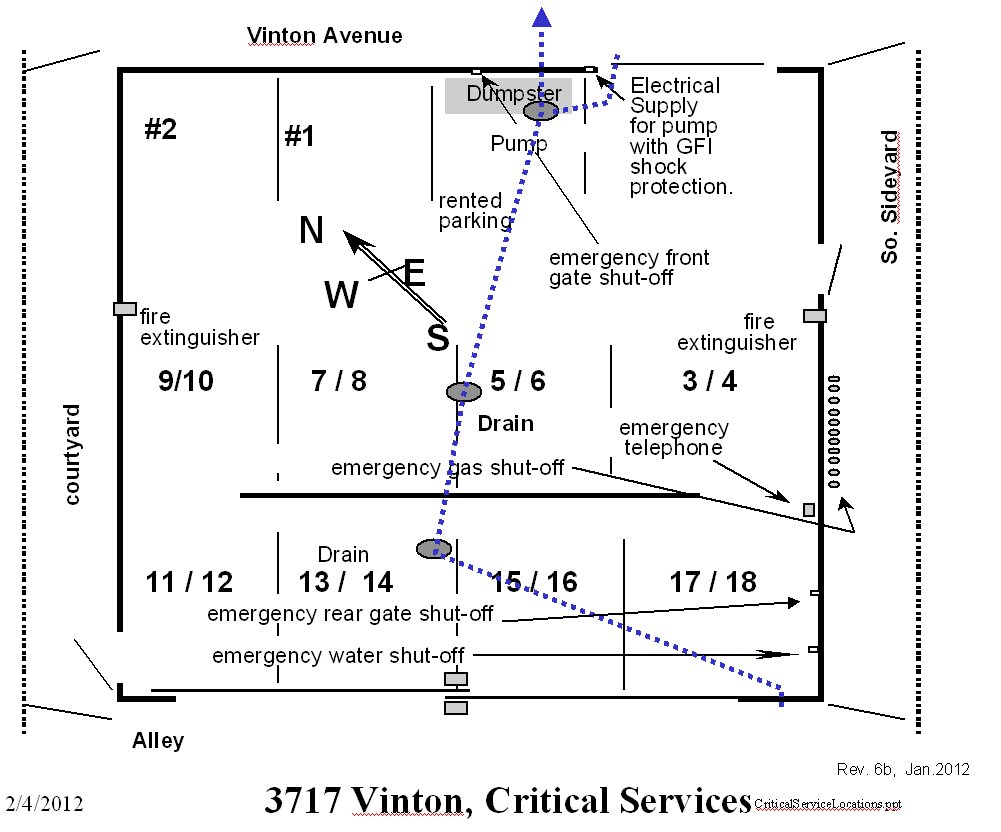

KEY UTILITY SERVICE LOCATIONS - Jasmin J0-UtilitiesSevices.jpg
Earthquake Value - Reset J1-QuakeValve_CloseUp%20of%20Reset.JPG

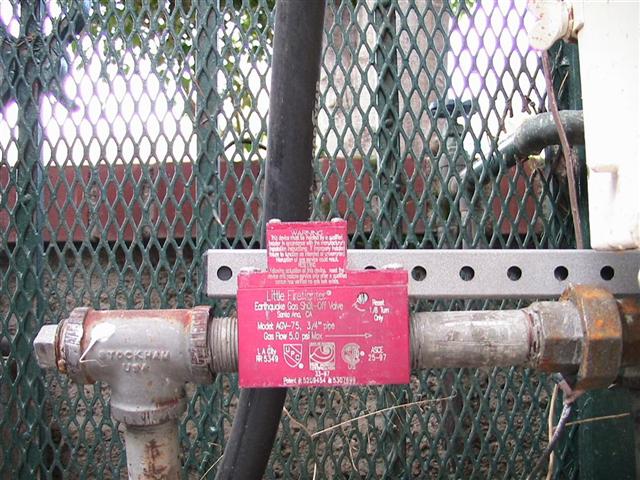

Earthquake Value - Indentification J1-QuakeValve_CloseUp%20on%20Pipe.JPG
INSPECTION CHECK-OFF SHEETS
